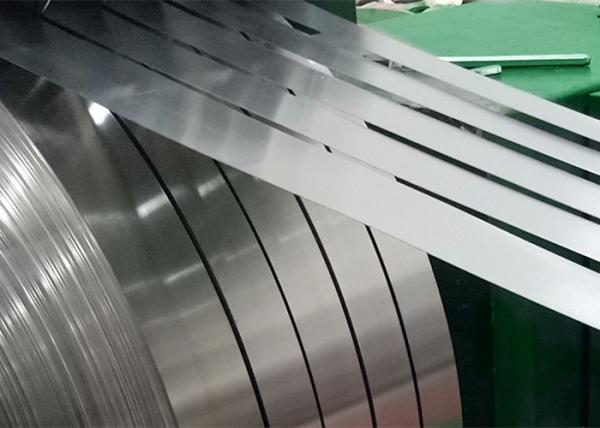

XUNSHI could supply Hiperco 50 HS cold rolled strip thickness range
0.10mm~0.50mm.
Hiperco 50 HS alloy is an iron-cobalt-vanadium soft magnetic alloy
which exhibits high magnetic saturation (2.4T) and a unique
combination of high yield strength and moderate core loss. The
alloy contains a niobium addition for grain refinement during mill
processing and final heat treating to produce higher yield strength
than conventional Hiperco 50(UNS R30005 alloy).
XUNSHI is proud to supply Hiperco 50 HS material delivered heat
treated. As heat treatment is really very critical for 50HS and
that's where XUNSHI has its strenght.
Hiperco 50 HS alloy strip should be considered a candidate for use
in the manufacture of rotor laminations for aircraft power
generation applications and for magngtic bearings.
These laminations are stamped from cold rolled strip and must be
final annealed in a protective atmosphere or vacuum environment.

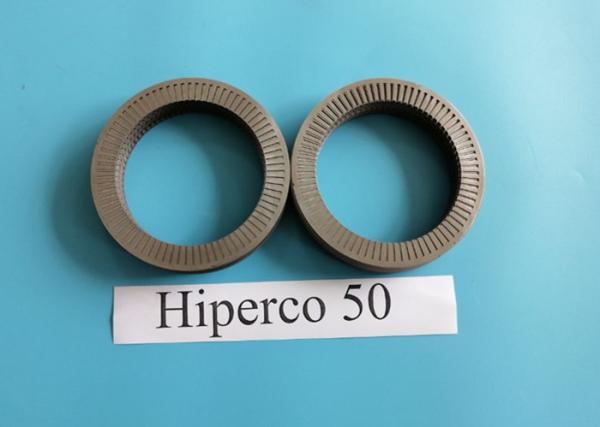

XUNSHI could deliver cold rolled strips, stamped laminations, heat
treated laminations and rotors per customer requirements.
Typical Chemical composition
- Cobalt 48.75 %
- Vanadium 1.90 %
- Niobium 0.30 %
- Carbon 0.01 %
- Fe balance
