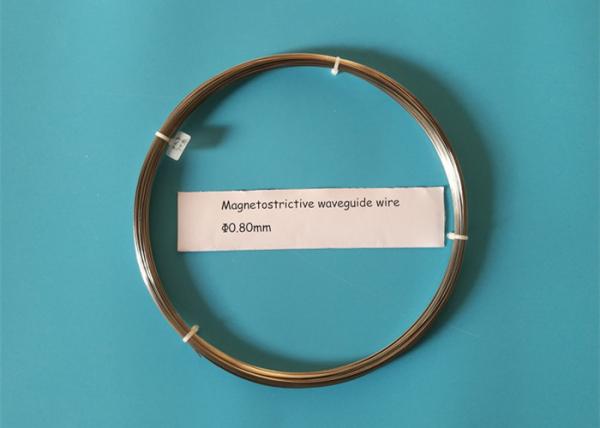

Magnetostrictive Waveguide Wire For Level Gauge Straight Wire 0.8mm
Available In Stock
Our products have been widely used in China, in addition to the
domestic but also exported to Turkey, South Korea, Iran, South
Africa and many other countries,and we keep stock of 100,000+
meters of magnetostrictive alloy wire of diameter
0.50mm/0.75mm/0.80mm. This makes it possible for us to make
the-next-day delivery.
The magnetostrictive waveguide wire is crucial to the quality of
the product, the waveguide wire of 0.80mm has high accuracy, good
consistency and good lintness. In order to facilitate
transportation, the waveguide wire is packaged as disk packaging,
but it can naturally bounce straight after releasing the packaging,
which solves the problem that troubled many manufacturers to
install because of the bending of waveguide wire. Waveguide wire is
hundreds of meters, customers can cut any length according to their
needs for the magnetostrictive liquid level meter of various scales
Characters
| Parameter | Common | High temperature |
| Magnetostriction | 6-8ppm | 25-32ppm |
| Density | 8.05/cm3 | 8.3/cm3 |
| Tensile strength | >686MPa | >700MPa |
| Curie point | 120℃ | 530℃ |
| Working temperature | -40~100°C | -40~300°C |
| Diameter | 0.35mm.50mm.75mm.80mm1.0mm | 0.50mm.80mm |
High temperature version of Magnetostrictive Waveguide Wire could
work in an environment temperature up to 300°C.
Stock size: 0.50mm, 0.80mm
Available size for order: 0.35mm~1.00mm
One of our customers in China tested the wire in a temperature of
200°C. The test result is very good. There is no signal attenuating during the test, even when there is a sharp increasing of
temperature.
Application will be for magnetostrictive level gauge, level
sensor,displacement sensor, level gauge probe in chemical industry,
food industry and so on.
Our waveguide wire was tested by a great many companies which
produce Magnetostrictive Sensors. And the test results are all very
good. If needed, we can provide sample free of charge.
