3J21(Co40CrNIMo)Superelastic Alloy for elastic components
XUNSHI supplies 3J21 alloy for elastic components.
3J21 is a Co-Cr-Ni-Mo high-elastic alloy, which belongs to a
deformation reinforced cobalt-based alloy, with good plastic
properties and easy to process in the solid solution state. After
high strain rate cold processing and time limit treatment, 3J21 can
obtain high mechanical and elastic properties,but after the solid
solution treatment, the alloy can no longer be strengthened by time
limit treatment.
The 3J21 alloy strip we supplied has now been successfully exported
to a pan-plug sealing manufacturer in Italy, replacing the elastic
materials previously produced in France.
Successful project: Spring energized seal-Italian customer
The customer used Phynox strip from France in the past. After 6
months' strict test in the lab, our 3J21 strip is commented as
excellent in performance.
Characters
- Combination of high strength, ductility and good mechanical
properties at ambient temperatures
- Excellent fatigue life
- Excellent corrosion resistance in numerous environments
- Non magnetic
- Age hardenable (Spring Temper only)
- Good for sea water applications
Application
- Springs
- Seal components
- Medical devices
- Components for watches
- Aerospace applications
- Petro-chemical applications
- Marine engineering
Typical composition(*% in weight)
C=0.15, Ni=15.50, Co=40.00, Cr=20.00, Mo=7.00, Mn=2.00,
Fe=remainder
Forms of supply
Wire:0.10-6.0mm

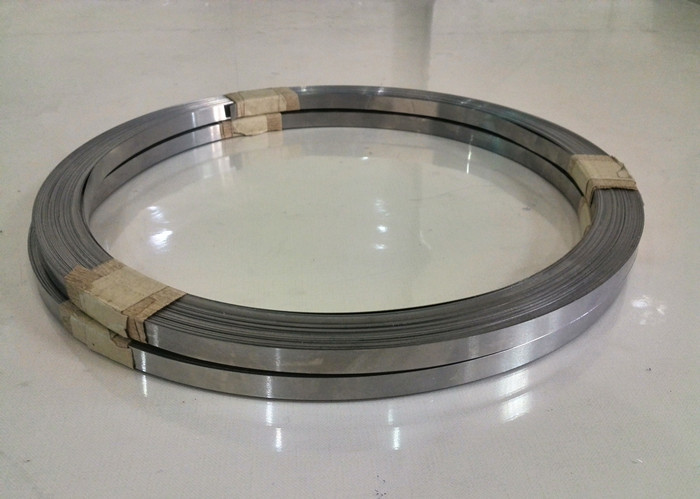

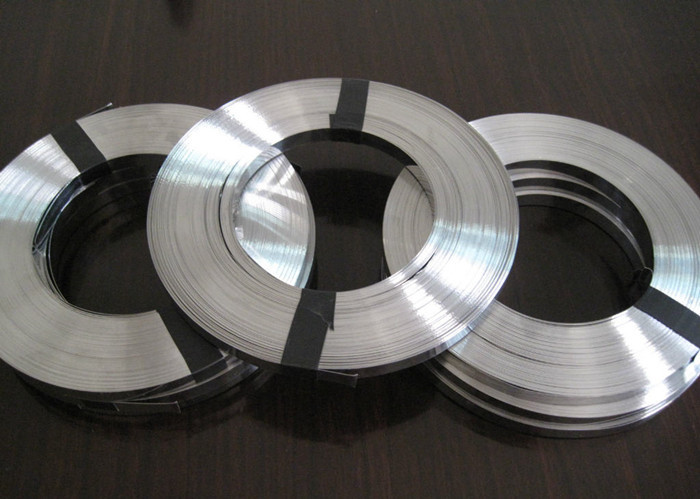

Strip:0.05-2.0mm
Round bar:diameter 20-100mm
The Equal grades:
R30003,Phynox(Francce),Elgiloy*,Co40CrNiMo,NAS604PH,K·R·N(Japan),40КHXM(Reussia)
