AMS 5225 UNS N09902 Iron-Nickel Alloy Strip Solution Heat Treated,
Cold Rolled, 50% Reduction
N09902 strip has been used typically for diaphragms, leaf springs,
and helical springs, requiring a precipitation-hardenable alloy
with a temperature coefficient of modulus of elasticity of -20 to
+20 x 10-6 per degree Fahrenheit from -50 to +150 °F (-36 to +36 x
10-6 per degree Celsius from -46 to +66 °C) after suitable heat
treatment, but usage is not limited to such applications.
Chemical composition
Nickel (plus
Cobalt).....................................................41.0-43.5
Chromium....................................................................4.90-5.75
Titanium.......................................................................2.20-2.75
Aluminum
....................................................................0.30-0.80
Carbon........................................................................0.06
max.
Manganese
.................................................................0.80
max.
Silicon
.........................................................................1.00
max.
Sulfur
..........................................................................0.04
max.
Phosphorus
................................................................0.04
max.
Iron
...............................................................................Balance
Typical application
- Diaphragms
- Leaf springs
- Helical springs
- Bourdon tubes
- Delay lines
- Electro-mechanical filters
- Tuning forks
- Vibrating reeds
- Aneroid capsules
- Geophysical instruments
- Hairsprings for timing devices
- Springs for weighing instruments
Spec
- SAE AMS 5221 - Strip, solution annealed
- SAE AMS 5223 - Strip, 10% cold rolled
- SAE AMS 5225 - Strip, 50% cold rolled
Forms of supply
- Wire
- Strip
- Plate

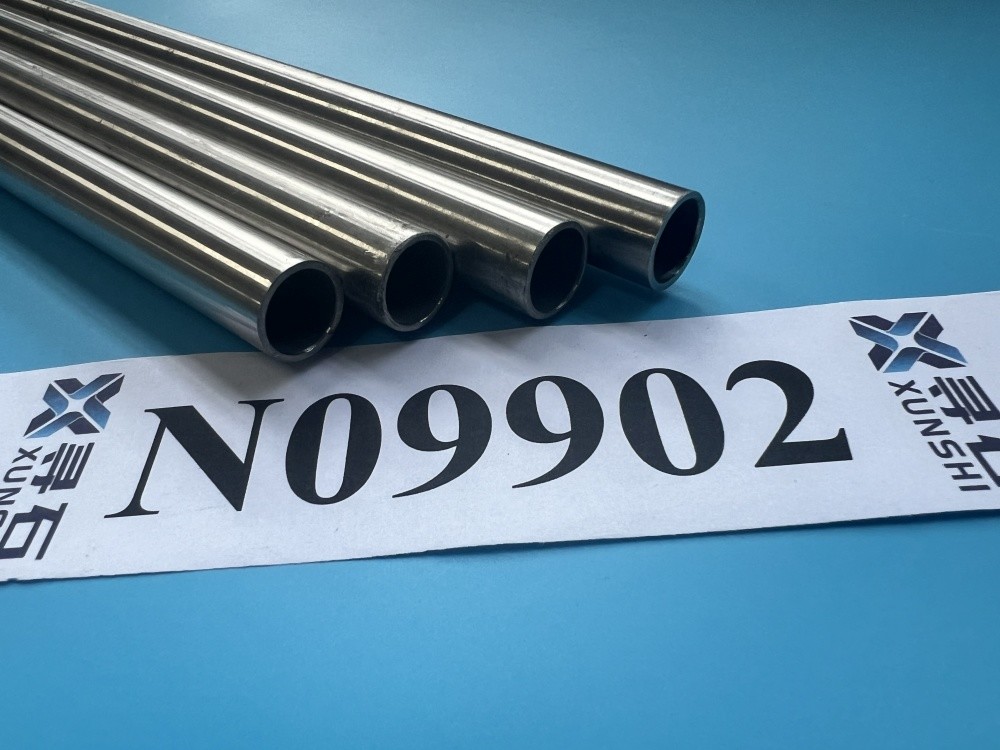

- Tube
- Rod
- Capillary
About XUNSHI
Suzhou Xunshi New Material Co. Ltd- referred as XUNSHI hereafter,
is a professional manufacturer of high-performance alloy products.
XUNSHI is engaged in supplying high quality and cost-effective
Superalloy, Anti-Corrosion Alloy, Precision Alloy, Special
Stainless Steel and Magnetostrictive Material to customers
worldwide.
Why XUNSHI
· Highly experienced in alloy industry
· Top experts of industry in China
· Advanced technology and process from top famous institutes in
China
· Advanced devices through whole production and inspection process
· Strict quality control system
· Company motto: best service, most value
· Smart sales policy
Service Items of XUNSHI
· Non-standard product research and pre-production
· Fabrication of products
· Cutting, splitting for sheets and plates in stock
· Heat treatment (Solution treatment, aging harden treatment,
anneal, spring temper, quench etc.)
· Surface finish (peeling, gridding, polishing)
· Logistics service
· Customized packing service (also for exporting)
· Import and export (XUNSHI is certificated)
· Document translation
· Hard-to-find material sourcing
Customers of XUNSHI
Customers of XUNSHI are all over China (Taiwan and Hong Kong
included). And we are exporting to USA, Canada, Italy, UK, Poland,
Greece, Russia, Turkey, Iran, Israel, South Africa, South Korea,
North Korea, India, Argentina, and Brazil and so on. Customers from
30+ countries trust us.
Where is XUNSHI
A- XUNSHI is in Huaqiao, Kunshan, 215332 China, which is very
closed to Shanghai.
B- Xunshi is around 80KM from Shanghai Pudong International Airport
(PVG).
C- 20KM from Shanghai Hongqiao Airport
D- 20KM from Shanghai Hongqiao Railway Station
E- You can contact XUNSHI sales for a pickup service.
