Mu-metal Hymu80 is well known for its high performance in Magnetic
Shield. It is widely used for shielding to protect electrical
components from stray magnetic fields.
HYMU 80 alloy is an unoriented, NiFeMo alloy with 80% Nickel
content. It could be heat treated to show very high initial
permeabilities, maximum permeabilities, minimum hysteresis loss and
AC core losses at low magnetic flux densities.
Chemical composition(ASTM A753 Alloy 4)
- C: 0.05 max
- Mn: 0.80 max
- Si: 0.50 max
- P: 0.02 max
- S: 0.01 max
- Cr: 0.30 max
- Ni: 79.0-82.0
- Mo: 3.5-6.0
- Co: 0.5 max
- Cu: 0.3 max
- Fe: balance
Spec
- DIN 17745
- DIN 17405
- DIN EN 60404-8-6
- ASTM A 753
- MIL-N-14411C
Main Character
- Very high initial permeabilities
- Maximum permeabilities
- Minimum hysteresis loss
- Minimum AC core losses
Application
- Highly sensitive and small power transformers f in weak magnetic
fields
- Low power magnetic amplifier
- Relay
- Choke
- Magnetic heads for magnetic recording devices
- Magnetic shielding
- Wound iron core
- Cutting iron core
- Laminated core.

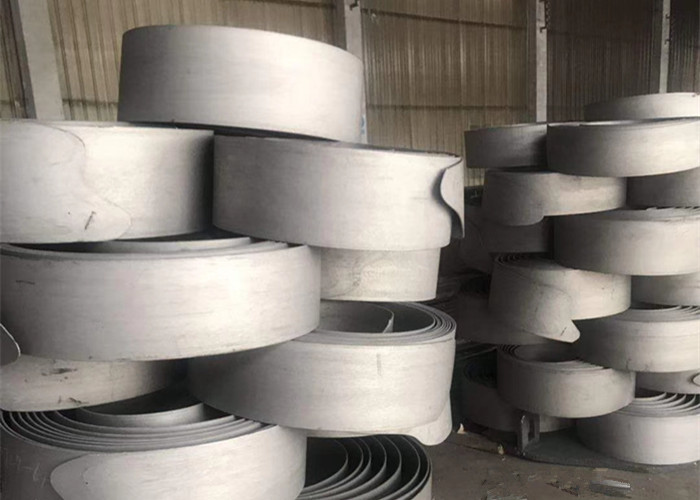

Form of supply
- Forging
- Round bar
- Cold drawn wire
- Hot rolled plate/strip
- Cold rolled strip

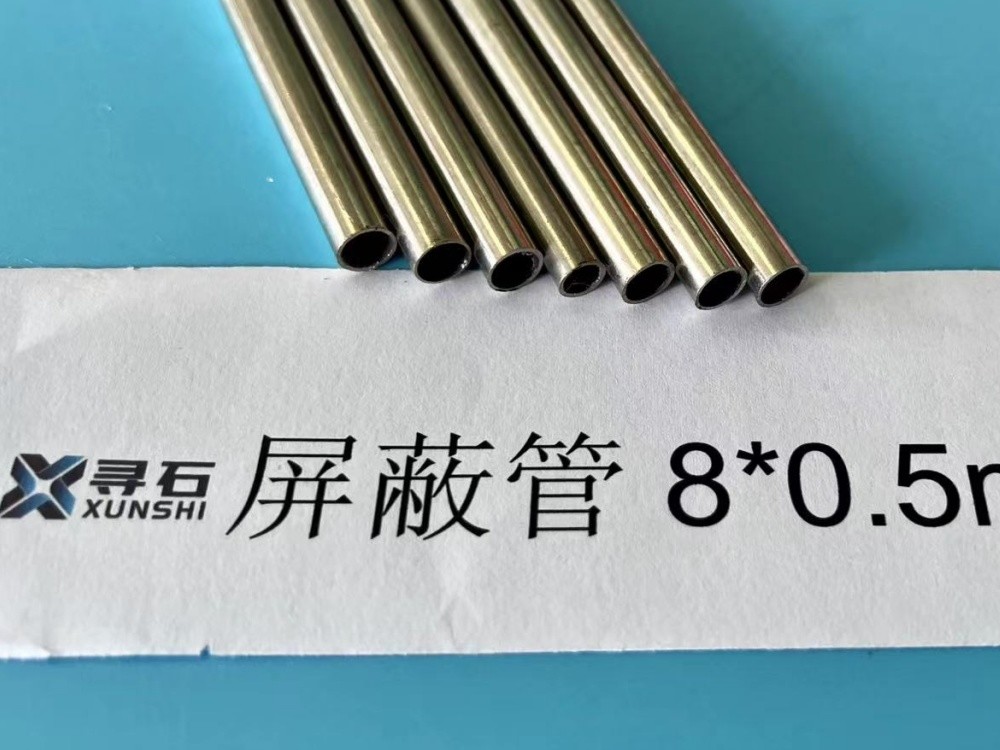

- Seamless pipe/tubing
- Welding pipe/tubing
- Capillary
