    FeCo17 VACOFLUX 17 High Magnetic Saturation Up To 2.22 T High Pressure Diesel Injection

    Ask Lasest Price
    Brand Name : XUNSHI
    Model Number : Feo17
    Certification : ISO 9001:2015
    Price : USD 45-60 per kg
    • Product Details
    • Company Profile

    FeCo17 VACOFLUX 17 High Magnetic Saturation Up To 2.22 T High Pressure Diesel Injection

    Xunshi could now offer FeCO17 Vacoflux 17 Soft magneitc alloy with high performance.


    VACOFLUX 17 exhibits a very high saturation of 2.22 T and is used in the area of high pressure diesel injection. The alloy can be cold formed.


    Xunshi VACOFLUX 27 magnetic properties

    B400A/m

    (T)

    B800A/m

    (T)

    B1600A/m

    (T)

    B2400A/m

    (T)

    B4000A/m

    (T)

    B8000A/m

    (T)

    B16000A/m

    (T)

    Hc(A/m)
    1.401.601.721.791.882.022.21152

    Typical composition

    Element% (mass)
    Cobalt16.5 – 17.5
    Chromium1.80 – 2.40
    Molybdenum0.65 – 0.95
    Vanadium0.40 max.
    Sulphur0.030 max.
    Carbon0.015 max.
    Other (each)0.30 max.
    IronBalanced

    Character

    • Saturation magnetic induction intensity: 2.22T
    • Resistivity: ρe= 0.41 µΩm
    • Cobalt content is as low as 17%, effectively reducing costs

    Forms of supply

    • Strip material, thickness 0.1 – 1 mm, width 30 – 220 mm

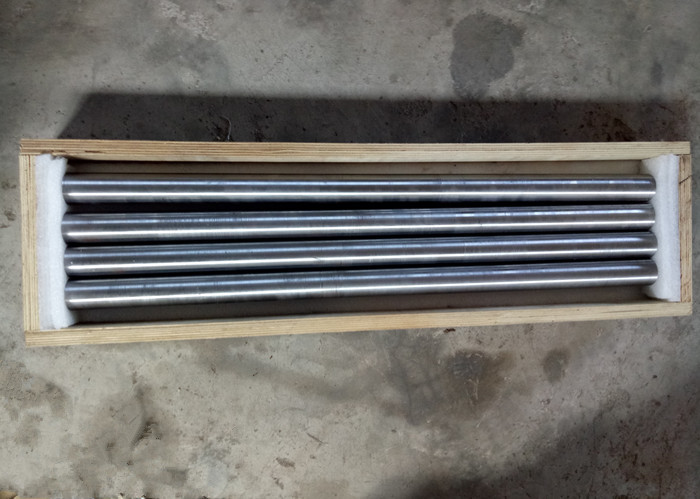

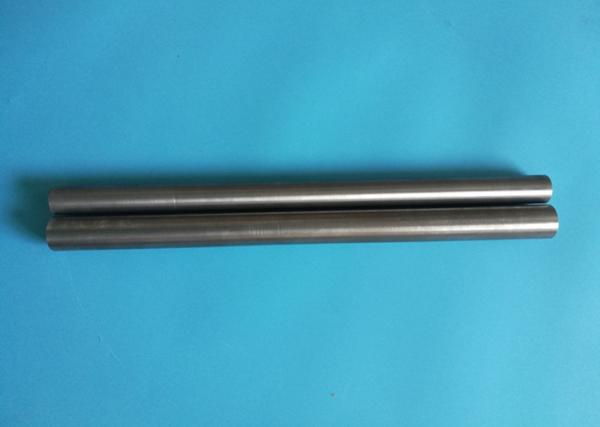

    • Solid rods, diameters 10 – 200 mm
    • Wire material, diameters ≤ 13.5 mm

    FeCo17 VACOFLUX 17 High Magnetic Saturation Up To 2.22 T High Pressure Diesel InjectionFeCo17 VACOFLUX 17 High Magnetic Saturation Up To 2.22 T High Pressure Diesel Injection
