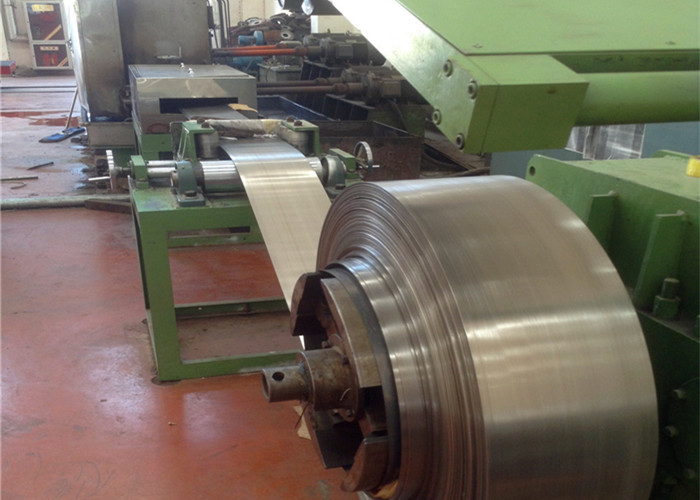

ASTM F31 UNS K94760 Glass Sealing Alloy Cold Rolled Strip ALLOY
42-6
K94760 is a typical glass sealing alloy, the coefficient of expansion is
similar to the soft glass in the temperature range of 20~400℃. The
alloy contains 6% chromium, and after oxidation treatment the alloy
surface produces a very dense oxide membrane that is strongly bound
to the substrate and well infiltrated with the soft glass, so that
can get high strength sealing surface.
The alloy K94760 contains 42% nickel and 6% chromium, that is why it is called the
42Ni-6Cr (Glass sealing 42-6). US Carpenter also produced the alloy
called Carpenter 42-6 .
Equal Grades
| Grade | Russia | America | Japan | France | Germany |
K94760
| Н42X6 | 42Ni-6Cr Carpenter42-6 Sylvania4 Sealmet 4 | NRS-1 YEF-426 SNC | ASV(426) Ni42Cr6 | Vacovit426 (NiCr426) |
Chemical composition(%)
| Grade | C | P | S | Mn | Si | Al | Ni | Cr | Fe |
| 4J6 | ≤0.05 | ≤0.020 | ≤0.020 | ≤0.25 | ≤0.30 | ≤0.20 | 41.5~42.5 | 5.40~6.30 | Balance |
K94760 | ≤0.07 | ≤0.025 | ≤0.025 | ≤0.25 | ≤0.30 | ≤0.20 | 41.0-43.0 | 5.0-7.0 | Balance |
Physical performance
| Grade | Heat treatment | Average line coefficient of expansion(10-6/°C) |
| 20-300°C | 20-400°C | 20-450°C |
| 4J6 | Heat to 1100 °C ± 20 °C in a vacuum or hydrogen atmosphere and
temperature insulation for 15 minutes, then cooling down to below
200 °C for no more than 5 °C / minutes | 7.6-8.3 | 9.5-10.2 | - |
Typical expansion coefficient
| Temperature range(°C) | 20-100 | 20-100 | 20-300 | 20-400 | 20-450 | 20-500 | 20-600 |
| Average coefficient of linear expansion (μm/m·°C) | 6.8 | 7.0 | 7.7 | 9.7 | - | 11.1 | 12.2 |
Density: 8.11g/cm3
Standards:
- ASTM F31-16(Glass sealing 42-6)
- YB/T 5253-2005
Application
The alloy has stable performance and used by the aviation factories
long term.It is mainly used to make various electric vacuum
components, such as the anode cap of the electronic beam tube, the
vacuum display screen and so on.
Available forms
Stip,Rod,pipe ,plate and tube
Our 4J6 precision strips were exported to the United States to a
well-known air headphones and hearing aid manufacturer. The product
quality won the trust of international customers.
