316LVM Special Stainless Steel for Surgical Implants ASTM F138 ISO
5832-1
316LVM(low carbo, vacuum melted), is an electro-slag remelted (ESR)
or vacuum arc remelted (VAR), low carbon, high nickel and
molybdenum version of 316 stainless, which is considered to be a
reasonable choice for surgical implants.
The chemical requirements for surgical implant 316LVM stainless
steel are documented in ASTM F 138 and ISO 5832-1 specifications. A
similar analysis of stainless steel is also available as ASTM A276
commercial quality alloy with different composition limits and
microstructure features when compared to implant quality.
Comparison Between Implant Quality and Commercial Quality Stainless
Steel(wt%)
| Implant Quality | Commercial Quality |
| Element | ASTM F 138 | ISO 5832-1 | ASTM A 276 |
| C | 0.030 | 0.030 | 0.030 |
| Mn | 2.00 | 2.0 | 2.00 |
| P | 0.025 | 0.025 | 0.045 |
| S | 0.010 | 0.010 | 0.030 |
| Si | 0.75 | 1.0 | 1.00 |
| Cr | 17.00-19.00B | 17.0-19.0B | 16.00-18.00 |
| Ni | 13.00-15.00 | 13.0-15.0 | 10.00-14.00 |
| Mo | 2.25-3.00B | 2.25-3.5B | 2.00-3.00 |
| N | 0.10 | 0.10 | 0.10 |
| Cu | 0.50 | 0.50 | — |
| Fe | Balance | Balance | (Balance) |
Tensile Properties of Implant Quality ASTM F 138 Bar and Wire and
ISO 5832-1 Bar
| Diameter or Thickness | Ultimate Tensile Strength | Minimum 0.2% Yield Strength | Minimum Elongation in 4D or 4WA |
| Standard | Condition | (mm) | (MPa) | (MPa) | (%) |
| ASTM F 138 | Annealed | ≥ 1.60 | min 490 | 190 | 40 |
| ISO 5832-1 | Annealed | All | 490– 690 | 190 | 40 |
| ASTM F 138 | Cold Worked | 1.60– 38.1 | min 860 | 690 | 12 |
| ISO 5832-1 | Cold Worked | ≤ 22 | 860–1100 | 690 | 12 |
| ASTM F 138 | Extra Hard | 1.60– 6.35 | min 1350 | — | — |
| ISO 5832-1 | Extra Hard | ≤ 8 | min 1400 | — | — |
Applications of 316LVM
- Fracture Fixation Devices
- Bone Plates
- Screws
- Intramedullary Nails
- Surgical Implant Devices
- Surgical Instruments
- Body piercing jewelry

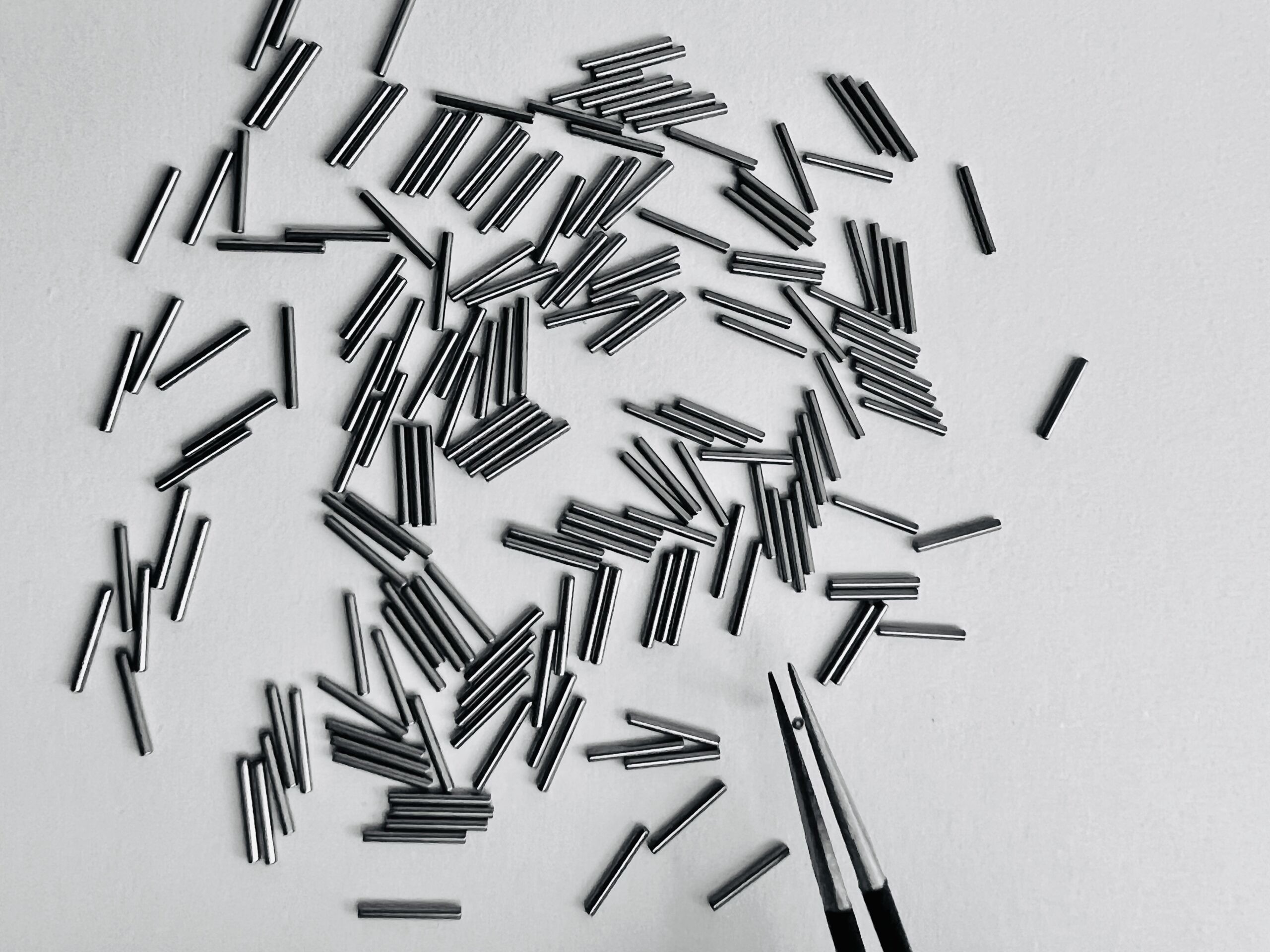

Forms available at XUNSHI
