Kovar* (ASTM F-15) UNS K94610
Character of Kovar expansion alloy
Kovar alloy is magnetic at all temperatures below the Curie point.
Magnetic properties will depend upon heat treatment; the lower the
hardness, the higher the permeability values and lower hysteresis
loss.
Density: 8.36g/cm3
Curie Temp: 435°C(815°F)
Introduction of Kovar expansion alloy
Kovar is a Ni-Fe alloy with 29% Nickel, 17% Cobalt and the
remaining balance is Iron. The expansion characteristics of Kovar
match both borosilicate (or Pyrex) glasses and alumina ceramics,
making it one of the most popular of the controlled expansion
alloys for hermetic sealing applications.
Chemical composition of Kovar alloy
C≤0.020, Ni≤29.0, Si≤0.20, Mn≤0.30, Co≤17.0, Fe=remainder
Delivery

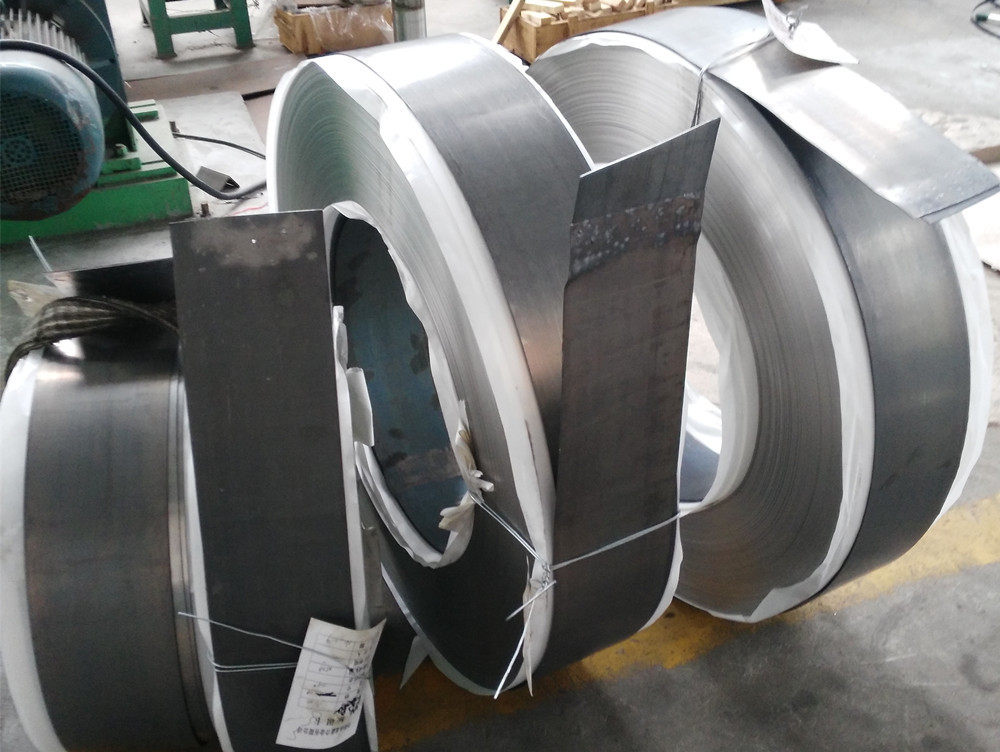

Huge stock of strip, bar and wire in stock. Fast delivery with 5
days for customized size. Delivery of other products please confirm
with XUNSHI.
Forms available at XUNSHI
Plate, sheet, strip, wire, rod, bar, forging, tube, pipe,
capillary, square pipe, and parts
Application of Kovar expansion alloy
Kovar is widely used in applications such as power tubes, microwave
tubes, transistors, diodes, hybrid packages, and other kinds of
scientific instruments.
Equal grades
4J29(China grade), ASTM F-15, NILO K, Pernifer 2918, Rodar, Dilvar
P1, UNS K94610, 29-17 alloy
Standards
ASTM-15
*Kovar is a registered trademark of Carpenter Technology
Corporation
